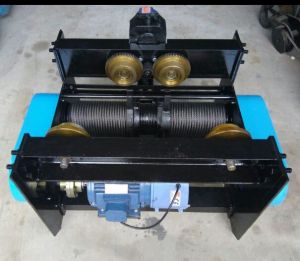

Electrical Wire Rope Hoist

An Electrical Wire Rope Hoist is a lifting device that uses an electric motor to drive a wire rope to lift, lower, and move heavy loads in industrial and commercial environments. It is an essential piece of equipment in industries such as construction, manufacturing, and warehouses, where heavy lifting is required.

1. Electric Motor:

   • The electric motor is the driving force behind the hoist. It provides the power necessary to lift and lower heavy loads.
   • It is usually designed for high-efficiency operation and may include speed control to adjust lifting speeds depending on the load and application.

2. Wire Rope:

   • The hoist uses steel wire rope wound around a drum or pulley system. The rope is designed to lift heavy loads by unwinding from the drum during lifting and winding back during lowering.
   • The wire rope is engineered to handle high tensile forces and is built to last, offering durability for heavy-duty operations.

3. Lifting Drum:

   • The wire rope is wound around the lifting drum, which is connected to the electric motor. As the motor runs, it rotates the drum, either winding or unwinding the rope to move the load up or down.

4. Brake System:

   • Most electric wire rope hoists are equipped with an automatic brake system that ensures that the load remains securely held in place when the motor is turned off.
   • The brake prevents the load from falling unexpectedly and is an important safety feature, especially when lifting heavy objects.

5. Gearbox:

   • The hoist uses a gearbox to control the motor’s speed and torque. It allows the hoist to lift heavy loads while operating at a controlled, safe speed.
   • The gearbox helps reduce motor speed while increasing the torque, allowing the hoist to lift heavier loads with ease.

6. Control System:

   • Pendant Controls: A standard feature for operating the hoist, allowing the operator to raise or lower the load via a wired pendant control.
   • Remote Controls: Some hoists are equipped with wireless remote controls, providing greater flexibility and allowing the operator to control the hoist from a safe distance.
   • Limit Switches: These prevent the hoist from over-traveling beyond its set lifting or lowering range, providing an added layer of safety.

7. Trolley:

   • Some electrical wire rope hoists are mounted on a trolley, which allows horizontal movement along a beam or track. The trolley system enables precise control when moving loads across a factory or warehouse.

8. Overload Protection:

   • Most electrical wire rope hoists include overload protection mechanisms, which prevent the hoist from lifting loads that exceed its rated capacity. This helps protect the hoist from damage and ensures safe operations.

9. Safety Features:

   • Limit Switches: Automatically stop the hoist when it reaches its maximum or minimum limit, preventing damage to the hoist and the load.
   • Emergency Stop: An emergency stop button or system to immediately halt the hoist operation if there is a malfunction or dangerous situation.
