Chain Hoists

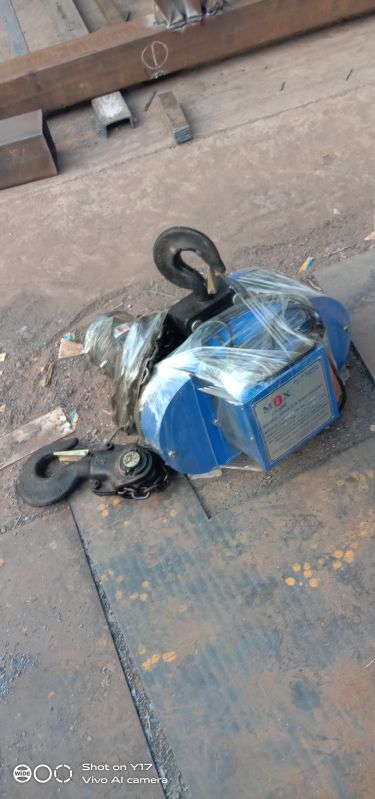

The MOX 1 Ton Chain Hoist is a type of mechanical lifting equipment designed to move heavy loads using a chain and pulley system. It is commonly used in industries such as construction, manufacturing, and warehouses for lifting or lowering heavy items. The "1 Ton" specification refers to the hoist's capacity, meaning it can safely lift a maximum weight of 1 ton (2,000 pounds or 1,000 kilograms).

Key features of a MOX 1 Ton Chain Hoist typically include:

• Manual or Electric Operation: Manual hoists require the user to pull on the chain to raise or lower a load, while electric hoists use an electric motor to perform the lifting operation automatically.

• Durability: MOX chain hoists are usually built with robust materials to handle tough working environments and ensure long-term reliability.

• Safety Features: Many hoists come with safety mechanisms, such as limit switches, overload protection, and braking systems to prevent accidents.

• Easy Operation: The hoist typically includes a chain that users pull or a motor-driven mechanism to make lifting and lowering heavy loads smoother and more efficient.

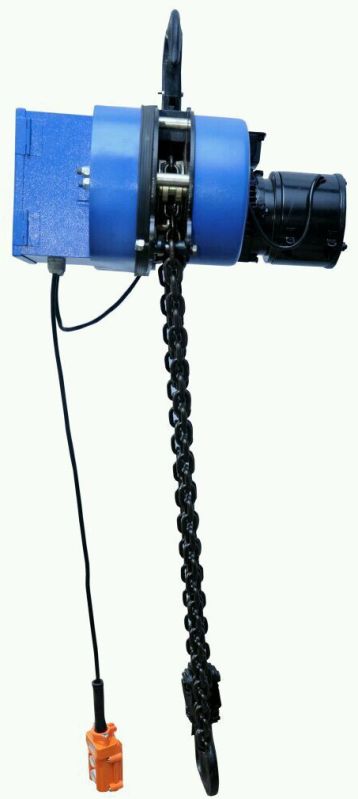

An Electric Chain Hoist is a lifting device powered by electricity that is used to raise and lower heavy loads. It operates by using an electric motor to drive a chain that pulls the load upwards or lowers it. Electric chain hoists are widely used in industrial, construction, and warehouse applications due to their speed, efficiency, and ease of use compared to manual chain hoists. Key Features of an Electric Chain Hoist: Electric Motor: The hoist uses an electric motor to power the lifting mechanism, making it much easier and quicker to lift heavy loads compared to manual hoists. Load Capacity: Electric chain hoists come in various weight capacities, ranging from lightweight models (e.g., 1 ton) to heavy-duty versions (e.g., 5 tons, 10 tons, or more). The capacity should match the load requirements of your specific application. Chain System: The hoist features a chain that passes through gears, which are powered by the electric motor. This chain raises or lowers the load. In many hoists, the chain is made of durable steel for strength and durability. Speed and Efficiency: Electric chain hoists are faster and more efficient than manual hoists, allowing operators to move loads more quickly and with less physical effort. Many models offer adjustable speeds for lifting and lowering, giving the operator more control over the operation. Control Mechanism: Electric chain hoists typically come with a push-button control (pendant control) or wireless remote for operation. These controls allow the operator to safely and precisely control the lifting and lowering of the load from a distance. Safety Features: Overload Protection: Ensures the hoist does not lift more than its rated capacity, preventing damage to the hoist or the load. Limit Switches: Automatically stop the hoist when the load reaches its upper or lower limit, preventing damage to the hoist. Emergency Stop Button: Allows the operator to quickly stop the hoist in case of emergency. Compact and Durable Design: These hoists are typically compact, which makes them easy to install and use in tight spaces. They're designed to withstand heavy-duty use in challenging environments, including construction sites and factories. Power Supply: Electric chain hoists are powered by either single-phase or three-phase electricity, depending on the model and the application. Single-phase models are often used for lighter tasks or in smaller workshops, while three-phase models are used for heavier, industrial applications. Versatility: Electric chain hoists can be used for a variety of tasks such as lifting materials, machinery, and components in warehouses, factories, automotive shops, and construction sites. Applications: Construction: Lifting heavy materials or tools. Factories and Warehouses: Moving products or machinery from one point to another. Maintenance: Lifting and positioning machinery or equipment during repairs. Shipping and Logistics: Handling heavy cargo or containers. Advantages Over Manual Chain Hoists: Speed: Electric chain hoists can lift loads much faster than manual hoists, improving productivity. Reduced Physical Effort: Since the hoist is powered by electricity, the operator doesn't need to exert as much force. Precision: With remote control, the operator can lift or lower loads with great precision. Automation: For repetitive tasks, the electric chain hoist offers better efficiency and automation. Choosing the Right Electric Chain Hoist: When selecting an electric chain hoist, consider the following: Load Capacity: Ensure that the hoist can handle the weight of the items you intend to lift. Lift Height: Determine the height you need to lift loads to. Hoists come in different lifting heights, so make sure the hoist fits your space.

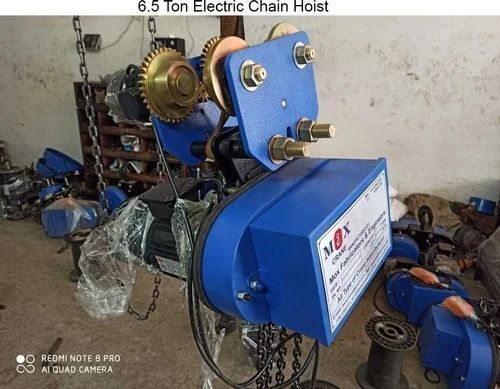

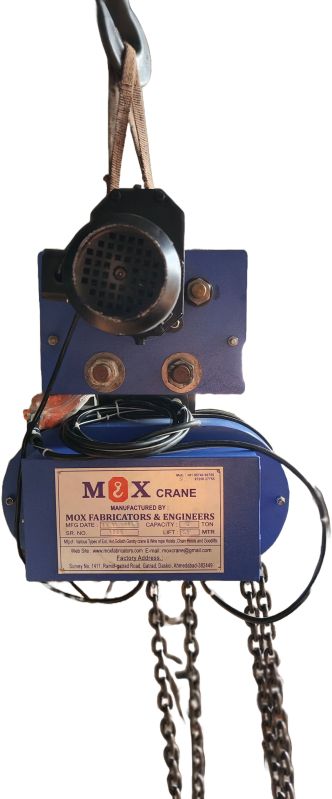

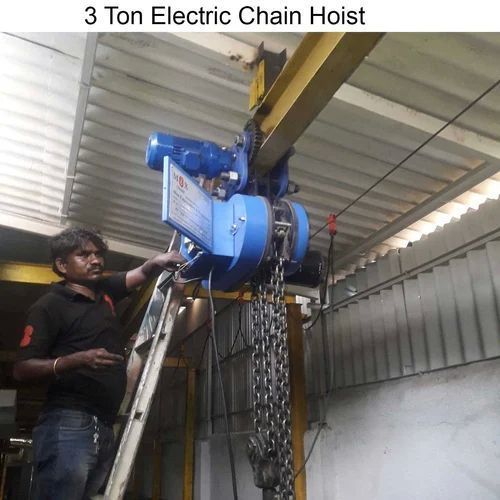

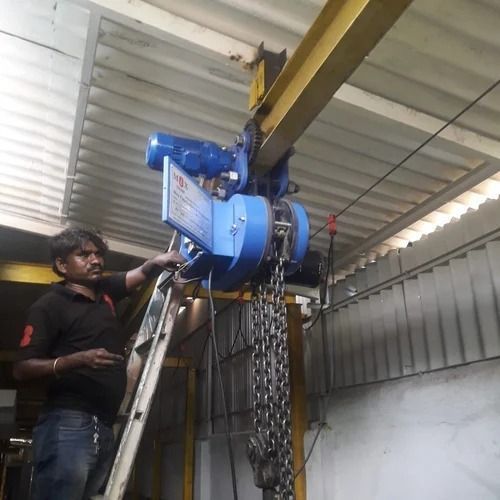

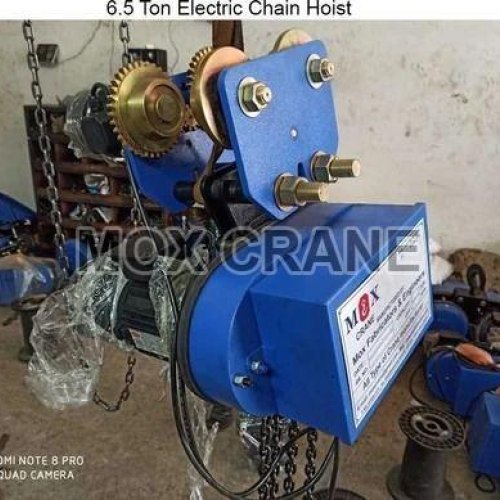

A trolley chain hoist is a type of hoisting equipment used for lifting and lowering heavy loads, and it incorporates a chain-driven mechanism along with a trolley system for horizontal movement. This setup allows the hoist to be moved along a beam or track, providing flexibility for handling loads across a workspace, such as in industrial settings, factories, warehouses, and workshops.

Key Components of a Trolley Chain Hoist:

1. Hoist Mechanism:

   • Chain: The primary lifting component, usually made of high-strength steel, is wrapped around a drum or gear system. The hoist uses the chain to lift or lower a load vertically.
   • Hook: The hook at the end of the chain is used to attach to the load being lifted.

2. Trolley:

   • Trolley Wheels: The trolley is fitted with wheels that run along a beam or track. It allows the hoist to move horizontally, giving the operator the ability to move the hoist across a wide area while lifting or lowering loads.
   • Trolley Frame: The framework that holds the hoist and connects it to the wheels.

3. Chain Drive Mechanism:

   • A chain drive system is used to operate the hoist, where a manual or electric chain pulls the load in an up and down motion, depending on whether the hoist is manually operated or powered.

4. Motor (for Electric Chain Hoists):

   • Some trolley chain hoists come with an electric motor to drive the chain and hoist the load, making them easier to operate for heavier lifting jobs.

5. Control System:

   • Manual chain hoists typically use a hand chain to operate the hoist.
   • Electric hoists may use a pendant control, wireless remote control, or a fixed panel for easy operation.

6. Brakes:

   • Built-in brakes ensure that the load remains stationary when the hoist is not in use or when the motor is disengaged.

Types of Trolley Chain Hoists:

1. Manual Trolley Chain Hoist:
   • Operated by hand, the user pulls on the chain to raise or lower the load.
2. Electric Trolley Chain Hoist:
   • Powered by an electric motor to raise or lower the load. The trolley part can also be powered, providing the ability to move the hoist across the beam with minimal effort.

Applications of Trolley Chain Hoists:

• Factories and Warehouses: For lifting and transporting heavy goods or materials along the overhead tracks.
• Construction Sites: For lifting building materials and equipment to higher levels.
• Workshops: To move heavy machinery or equipment horizontally while lifting them.
• Maintenance and Repair: For lifting and transporting equipment in various industrial settings.



A Hook Suspension Chain Hoist is a type of hoisting equipment commonly used for lifting and lowering heavy loads in various industrial and construction settings. It operates using a chain as the lifting mechanism, with a hook used to suspend the hoist on a support structure or crane system. Chain hoists are popular due to their reliability, ease of use, and ability to lift heavy loads in tight or compact spaces.

Key Features of a Hook Suspension Chain Hoist: 1. Design & Structure

• Chain as the Lifting Mechanism: The hook suspension chain hoist uses a chain, which is wound around a drum or sprocket. When the motor or manual mechanism is activated, the chain is lifted or lowered, thereby raising or lowering the load attached to the hook.

• Suspension Hook: The hoist is designed to be suspended from a fixed support structure or crane system via a hook. The hook serves as both a mounting point and a load attachment point.

• Manual or Electric Operation: Hook suspension chain hoists come in two primary forms:

  • Manual Chain Hoist: This type requires manual effort to operate, usually by pulling on the chain to raise or lower the load.

  • Electric Chain Hoist: This type uses an electric motor to operate the chain, making it easier to lift heavier loads without manual effort.

2. Load Capacity

• Heavy Load Handling: Chain hoists are capable of lifting heavy loads, with capacities typically ranging from 500 kg (1 ton) to 20 tons or more, depending on the hoist model and design.

• Adjustable Capacity: Some hook suspension chain hoists can be customized or equipped with additional chains to handle larger loads, making them versatile for different lifting needs.

3. Operation

• Manual Chain Hoists: In a manual chain hoist, the operator pulls on a chain to drive the lifting mechanism. The load is raised as the chain is pulled through a sprocket system. The operator then uses a brake to secure the load at the desired height.

• Electric Chain Hoists: Electric versions are powered by an electric motor that drives the chain, allowing for more precise control over lifting and lowering. The motorized hoist includes controls to adjust the speed and direction of the lift.

• Safety Brake System: Most modern chain hoists are equipped with an automatic braking system that ensures the load is securely held in place when the motor is turned off, preventing the load from slipping or falling.

4. Applications

• Industrial Applications: Hook suspension chain hoists are widely used in factories, warehouses, and manufacturing plants for lifting heavy equipment, materials, or products.

• Construction Sites: They are commonly used on construction sites to move building materials such as steel beams, cement bags, and large tools.

• Workshops and Repair Shops: In small workshops, garage or repair environments, manual chain hoists are often used for lifting engines, parts, and other equipment.

• Shipbuilding and Marine: In shipyards, hook suspension chain hoists are used to lift heavy components or ship parts.

• Mining: Used in mining operations to lift heavy mining equipment, tools, and materials.

5. Advantages



• Cost-Effective: Manual chain hoists are generally more affordable than other types of hoists, making them a budget-friendly option for lifting tasks.

• Versatile: Chain hoists can be used in a wide range of applications, from small workshops to heavy-duty industrial environments.

• Space Efficient: Hook suspension chain hoists are compact, and can be used in tight spaces where other lifting systems may not be feasible.

• Ease of Use: With simple mechanisms and user-friendly designs, they can be easily operated by workers with minimal training.

• Durability: The chain and hook mechanism is known for its robustness and reliability, capable of handling tough lifting tasks.
